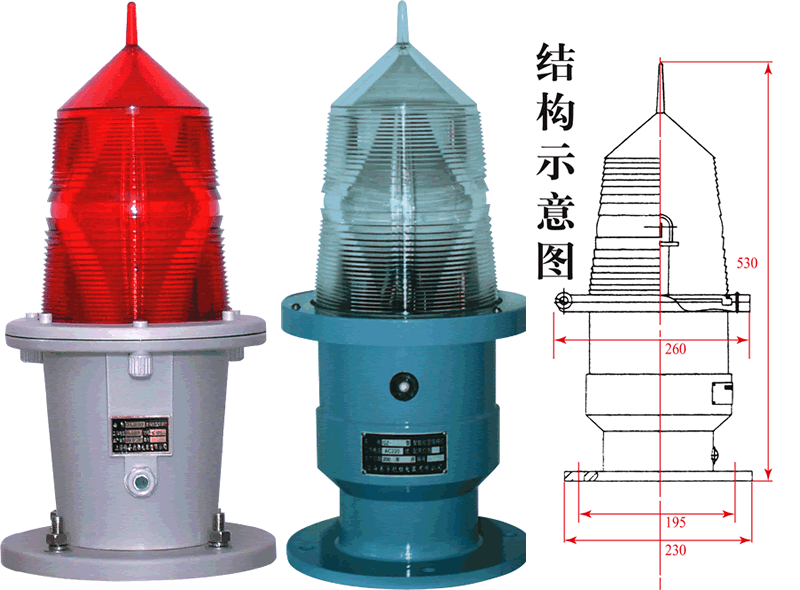

GZ -155 medium, high light intensity aviation obstruction lamp mainly consists of 155mm plastic lenses, an aluminum alloy lamp fixture, a controlling part and a pulsed-xenon lamp.
A 155mm plastic lens is a fresnellens molded with polypropylene acid plastics. This kind of lens has excellent light transmittance and is anti-sunbeam-aging. There are four color options for customers to select including white, red, green and yellow. The controlling part is the core controlling component preset by single-chip computer software and constitutes the automatic light control switch and other circuits with quality auxiliary electronic components. More than 10 thousand watts of boost pressure when it's at work operates the pulsed-xenon lamp and forces it to give off strong flash light. Here are three synchronous flash control methods to select:
1 、 ordinary type---- use one main controlling light to control several auxiliary lights to achieve synchronous flash.
2 、 intelligent type —— use synchronous wires and achieve synchronous flash in a hand-in-hand way. |
|
| Main technical parameters： |
|
|
AC:220V（ +40V/ — 135V ） |
static electricity |
10mA |
|
<50W |
flash frequency |
20-60 /min （ adjustable ） |
|
light colors |
white （ high light intensity ） ,
red （ medium light intensity ） |
effective light intensity |
white 100000cd, red 40000cd |
modulator tubes |
2 （ produced by haimann in Germany ） |
life span of the flash tube |
one tube >108 times |
light control sensitivity |
200LX （ adjustable ） |
functioning environment |
-40℃～+70℃ |
level of protection |
IP65 |
normal insulation voltage intensity |
2000V50Hz 、 1mA 、 1min without spark-through or arc-over phenomenon |

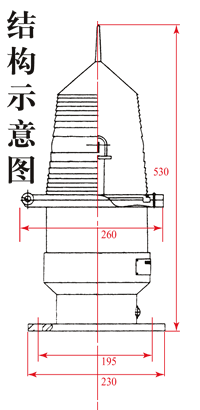

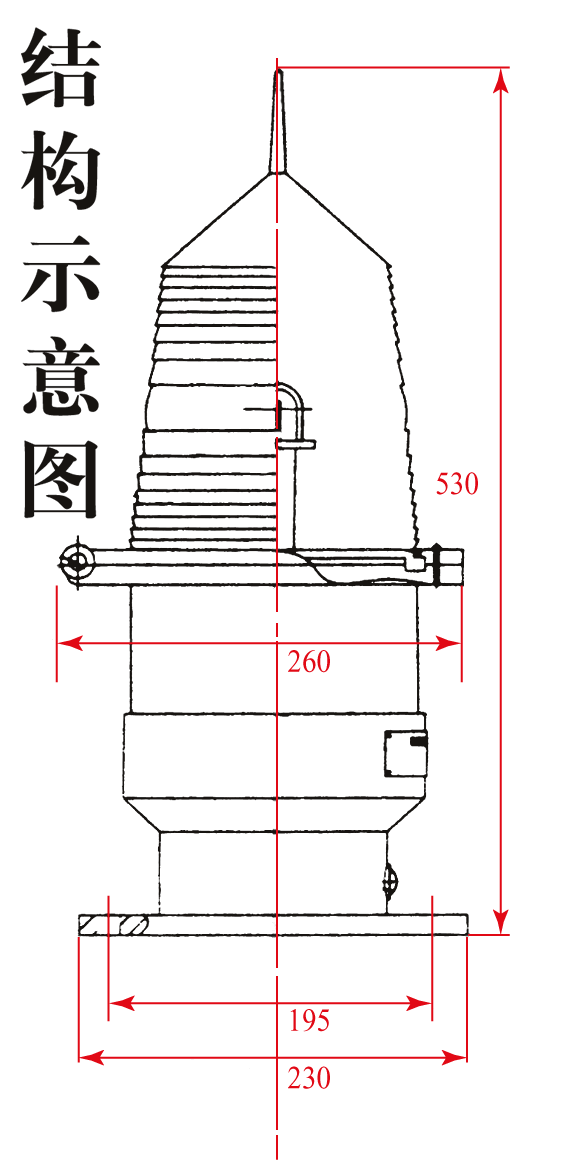

under-pan installation specification |
pitch circle Φ 195mmequispaced4- Φ 14mmhole |
net lamp weight |
5.3Kg |
|
| |
|
| |
|
|
