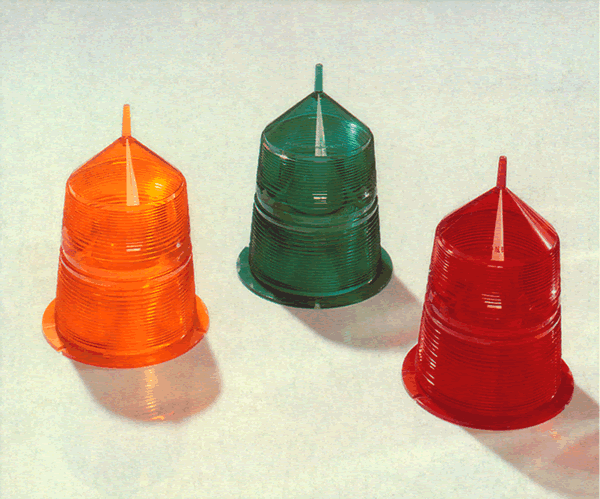

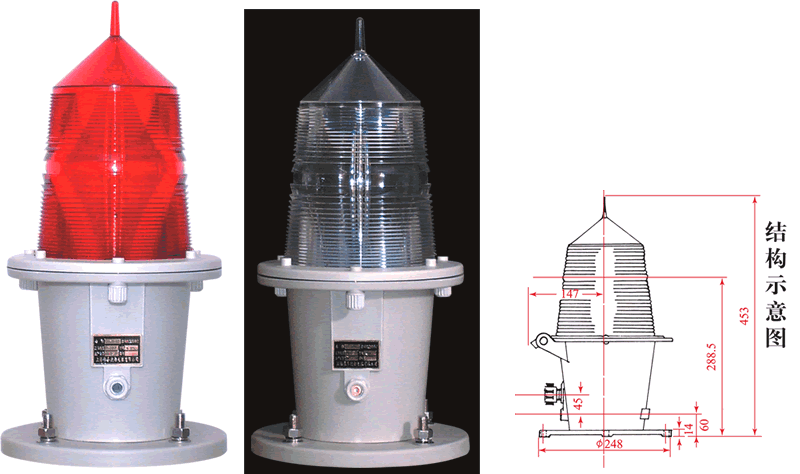

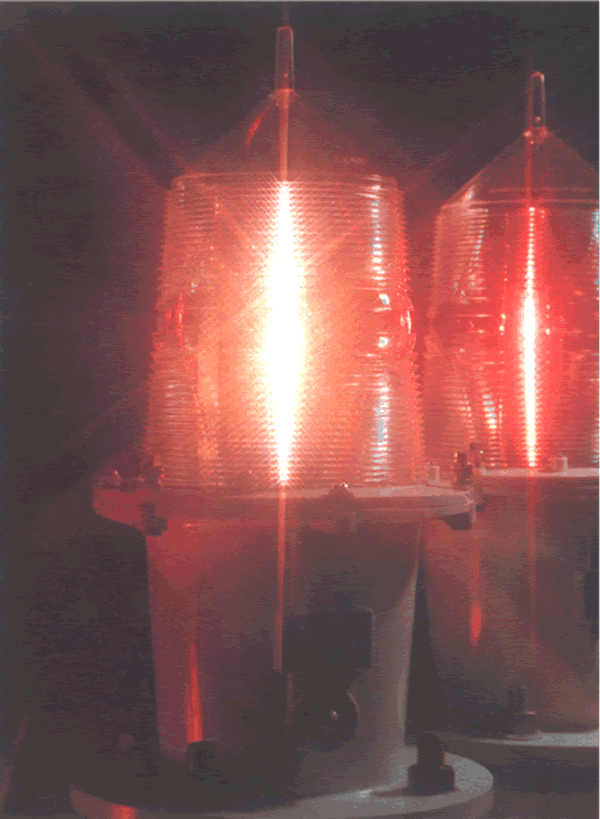

GZ-155(T 、 R) digital aviation obstruction lamp is a light digital type of aviation obstruction lamp with all-plastic appearance. A 155mm plastic lens is a fresnellens molded with polypropylene acid plastics. The lamp fixture is made of ABS engineering plastics, which is strike resistant and stable. The light source is the most advanced U type frequent flash pulsed-xenon lamp , which has the longest lifespan, best illuminant efficiency and least power waste. It also utilizes the single computer chip controlling technology with excellent auxiliary electronic components to control the flash of the tube. A single flash tube can be used 100 million times during its life span.
GZ-155(T 、 R) digital aviation obstruction lamp is the most intelligent obstruction lamp developed on the basis of GZ-155 with the wireless power line carrier remote control technology. It adopts modularization design. Centered around GZ-155T digital aviation obstruction lamp ， the lamp sends synchronous flash signals to its own power lines and enables several GZ-155R digital aviation obstruction lamps within the same low-voltage power transformer and same power phase to receive synchronous flash signals with their own power lines. The installation is very simple and convenient. The whole set of aviation obstruction lamp system can achieve automatic synchronous flash once the power is on. |
|
| Main technical parameters： |
|
| working voltage |
AC:220V（ +40V/ — 135V ） |
| dynamic power waste |
50W |
| flash frequency |
20-60
times/min |
effective light intensity |
medium light intensity red 40000cd 、 high light intensity white 100000cd |
tubes |
2 （ produced by haimann in Germany ） |
| life span of the tube |
one tube>108 times |
| light control sensitivity |
200LX （ adjustable ） |
| transmitting range of the carrier wave synchronous signals |
3km within the same low-voltage power transformer and same power phase |
| functioning environment |
-40℃～+70 ℃ |
| level of protection |
IP65 |

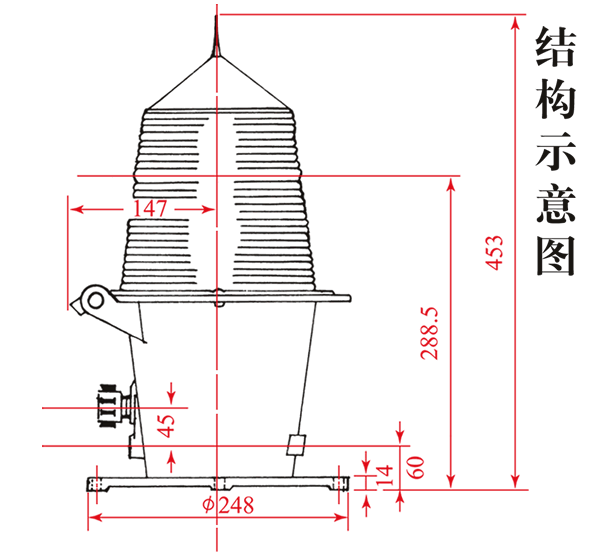

| under-pan installation specification |
pitch circle Φ 195mm equispaced 4- Φ 14mm hole |
| net lamp weight |
3.5Kg |
|
|
|
| |
|
|
