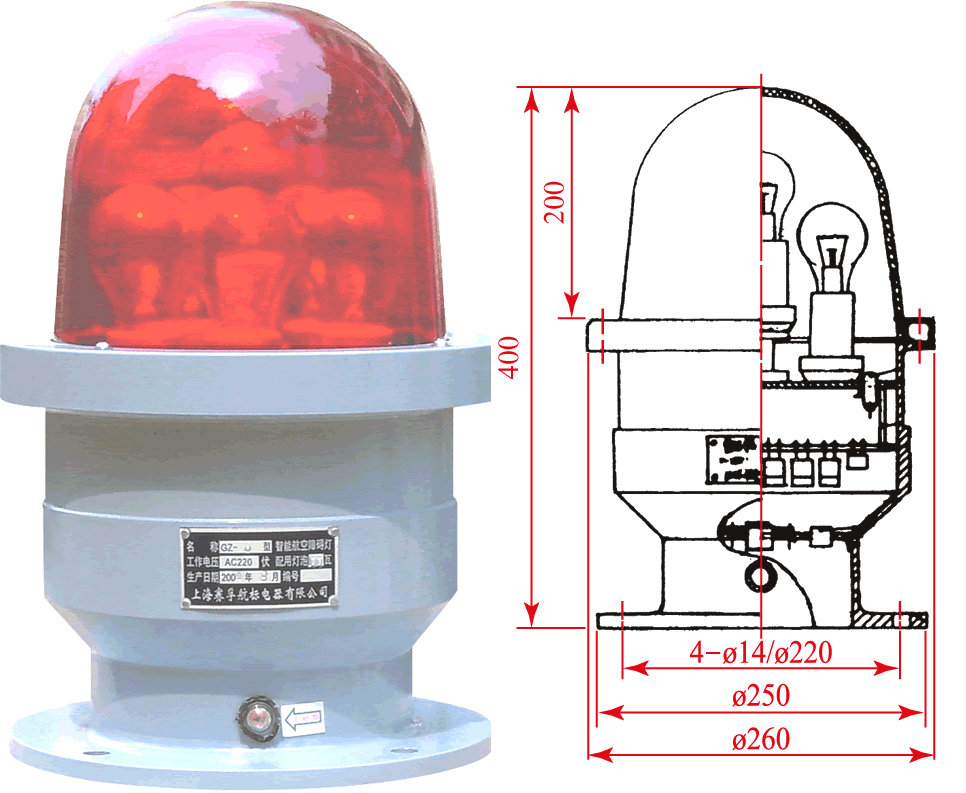

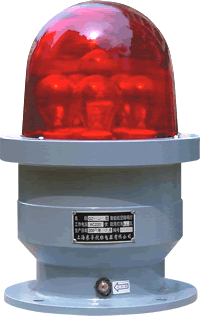

GZ-6 Intelligent Aviation Obstruction lamp which is currently the most advanced product in China is also an improved version of GZ-3 to GZ-5. 　　It has been widely used in bridges, high rises, broadcasting, TV and microwave communication towers, power plant towers, chimneys and buildings around airports so as to secure the aviation safety. 　　GZ-6 Intelligent Aviation Obstruction lamp adopts single computer chip as its core controlling part and functions according to the intelligent requirements in a stable and reliable way. ·It utilizes imported advanced long-life luminous source. Usually one bulb flashes with other five as backup. If flashing bulb breaks down, the preset computer software will catch the signal and automatically shift to the spare bulbs until the light returns to normal. ·It uses high-quality electronic components to form the automatic light-control switch which is turned on by itself at night or when it is foggy and turned off at day time. ·The flash period can be chosen among a total of 31 types. ·Wide applicable working voltage from C85V to 260V. ·Group flash through computer interface in a hand-in-hand communication style. It can link unlimited number of computers and does not require control cabinets to be synchronized. ·The lamps are made with whole-packing techniques in accordance with international standards. Anti-bounce, corrosion proof, anti-lightening strike and easy to install. Here are four synchronous flash control methods to select： 1 、 economic type-use one main controlling light to control several auxiliary lights to achieve synchronous flash. 2 、 ordinary type-use aviation obstruction lamp centralized controlling cabinet to achieve synchronous flash. 3 、 intelligent type-use synchronous wires and achieve synchronous flash in a hand-in-hand way. 4 、 digital type-use the most advanced power line carrier remote control technology, therefore achieve synchronous flash without controlling cabinets and synchronous wires. Main technical parameters： working voltage 　AC：220V（ +40V/ — 135V ） rated power waste 　110W light color options 　 red, green and white flash frequency 　 12 /min （ 31 types, adjustable ） light control sensitivity 　 200LX （ adjustable ） applicable bulb 　 100W/220V-6 bulbs effective light intensity 　 red 50-200cd functioning environment 　-40℃～+70℃ level of protection 　IP65 normal insulation voltage intensity 　 2000V/50Hz 、 1mA 、 1min without spark-through 、 arc-over phenomenon under-pan installation specification 　 pitch circle Φ 220mmequispaced4- Φ 14mmhole net lamp weight 　9.5Kg   wiring diagram
