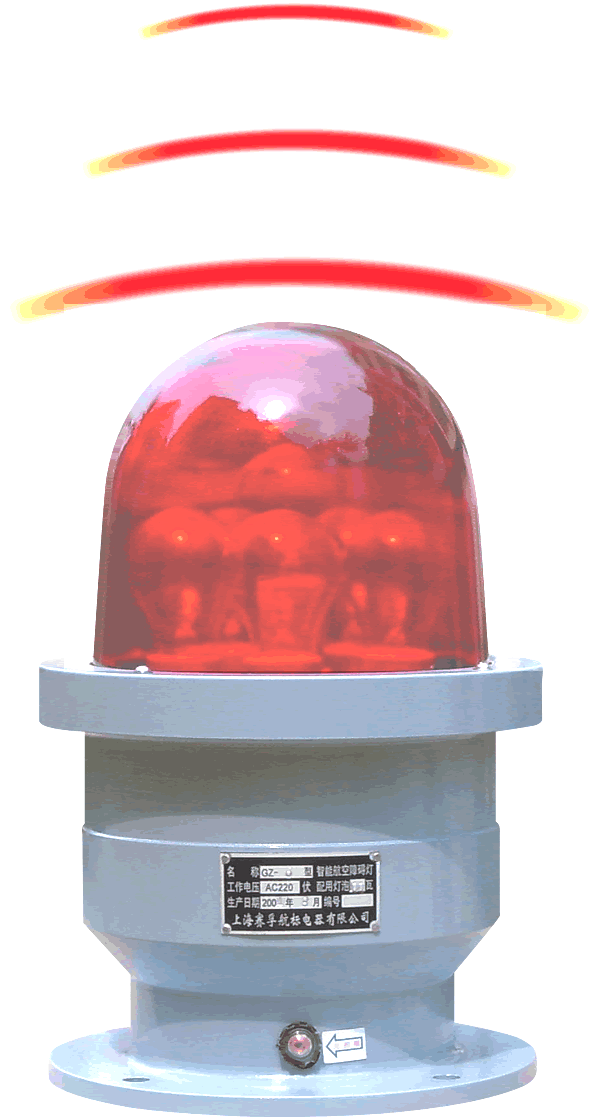

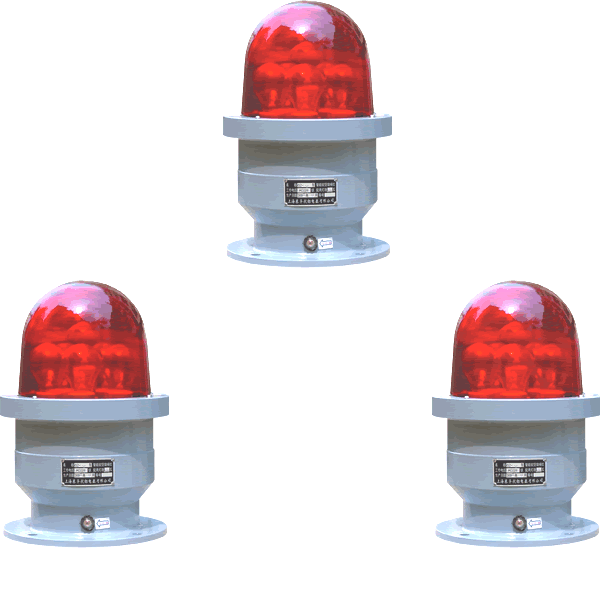

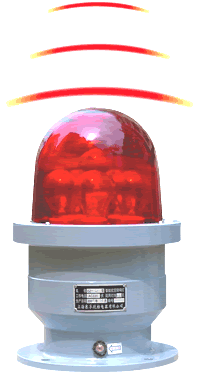

GZ-6(T、R) power line carrier synchronous intelligent type aviation obstruction lamp is a more intelligent new generation aviation obstruction lamp after GZ-6. It can be installed quite easily and achieve multi-light synchronous group flash without any control cabinet or synchronous wire. Centered around GZ-6T aviation obstruction lamp and based on Motorola’s RF chip, it utilizes low voltage power line as the carrier communication channel，enlarges spread spectrum mechanism with mode recognition and vague dealing principle by way of software de-spread technique, sends out carrier synchronous signals for multi-GZ-6R aviation obstruction lamps within the same low voltage power transformer and within the same power phase to receive synchronous signals and therefore achieves synchronous flash of the whole system and realizes the genuine digital requirements in essence. Main technical parameters： working voltage 　AC：220V（ +40V/ — 135V ） rated power waste 　110W light color options 　 red, green and white flash frequency 　 12 /min （ 31 types, adjustable ） light control sensitivity 　 200LX （ adjustable ） applicable bulb 　 100W/220V-6 bulbs effective light intensity 　 red 50-200cd carrier synchronous signal transmitting distance 　 trunk line 3KM carrier synchronous signal transmitting distance 　 within the same low voltage power transformer and power phase functioning environment 　-40℃～+70℃ level of protection 　IP65 normal insulation voltage intensity 　 2000V/50Hz 、 1mA 、 1min without spark-through 、 arc-over phenomenon under-pan installation specification 　 pitch circle Φ 220mmequispaced4- Φ 14mm hole net lamp weight 　9.5Kg   wiring diagram
