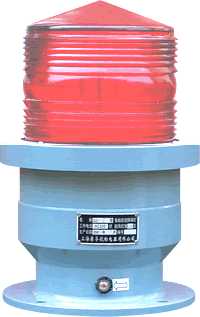

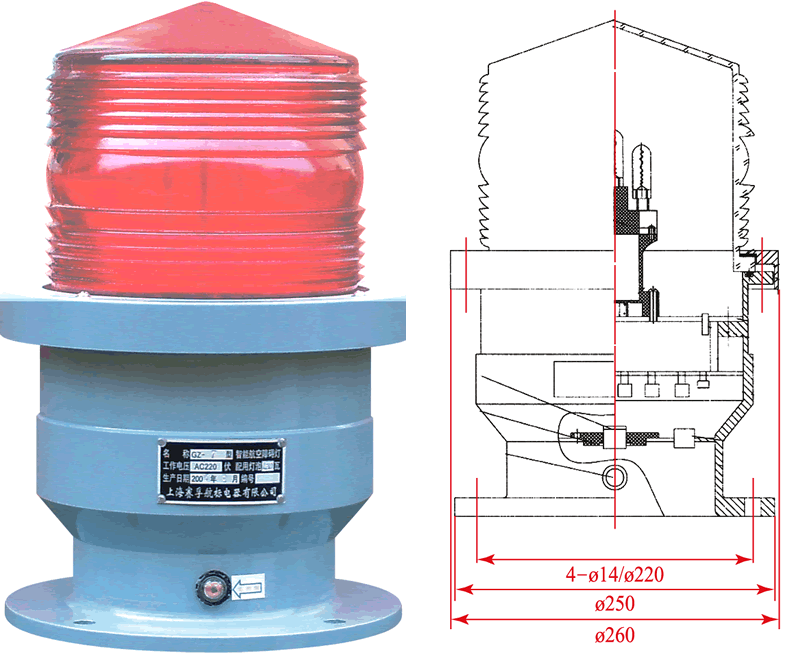

   GZ-7 aviation obstruction lamp is a new type of aviation obstruction lamp developed in accordance with international civil aviation standards. It possesses all the functions of GZ-6, based on which it was developed, and utilizes special halogen-tungsten light sources for navigational aids. The lampshade is made of high-intensity and high temperature resistant fresnelvitreous lens, which enables the flash light to stretch longer and reach farther.
Here are four synchronous flash control methods to select:
1、economic type- use one main controlling light to control several auxiliary lights to achieve synchronous flash.
2、ordinary type-use centralized control cabinets to achieve synchronous flash. 3、intelligent type-use synchronous wires and achieve synchronous flash in a hand-in-hand way.
4、digital type-use the most advanced power line carrier remote control technology, therefore achieve synchronous flash without control cabinets and synchronous wires.
   GZ-7 ( T 、 R ) aviation obstruction lamp's synchronous flash principle refers to that of the GZ-6 ( T 、 R ) aviation obstruction lamp 。
Main technical parameters:
working voltage
 AC :220V( +40V/ — 135V )
flash power waste
 160W
light source
  7 150W-bulbs utilizing special halogen-tungsten light sources for navigational aids ( imported OSRAM light source )
optional light colors
  red, green and white
optional light colors
  12 /min ( 31 types, adjustable )
effective light intensity
  red 2000cd
functioning environment
 -40℃~+70℃
level of protection
 IP65
normal insulation voltage intensity
  2000V/50Hz 、 1mA 、 1minwithout spark-through 、 arc-over phenomenon

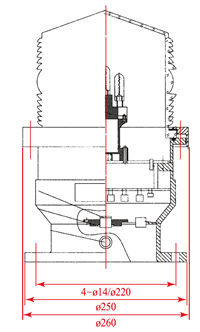

under-pan installation specification
  pitch circle Φ 220mmequispaced4- Φ 14mmhole
net lamp weight
 10Kg
