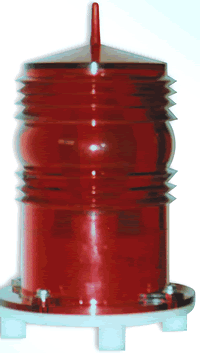

ＧＺ－ 70 mini-type obstruction lamp is small, light and controlled by light-control switches. The 70mm fresnellens is molded with polypropylene acid plastics. The lamp fixture is made of ABS engineering plastics, which is strike resistant and has quite high intensity. It utilizes quality electronic components to control the flash with the electricity supply ， suitable for road blockages and related warning signs. |
|
| Main technical parameters ： |
|
working voltage |
AC：220V |
power waste |
16W |
Light source |
15W incandescent lamp |
|
flash frequency |
1
12 times/min （ adjustable
） |
color |
red, white |
light control sensitivity |
200LX （ adjustable |
functioning environment |
-40℃～+70℃ |
level of protection |
IP65 |

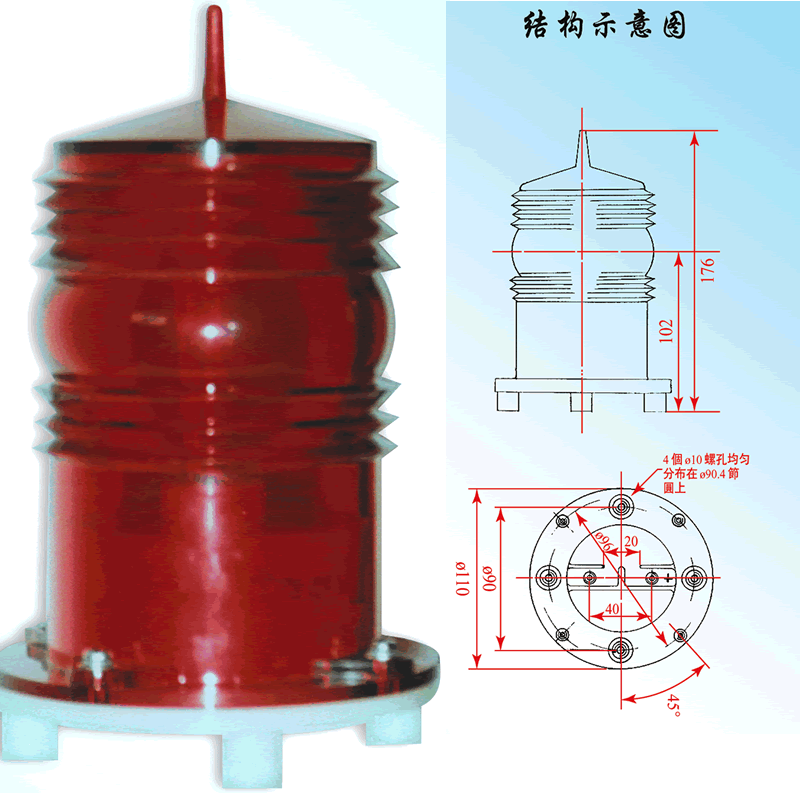

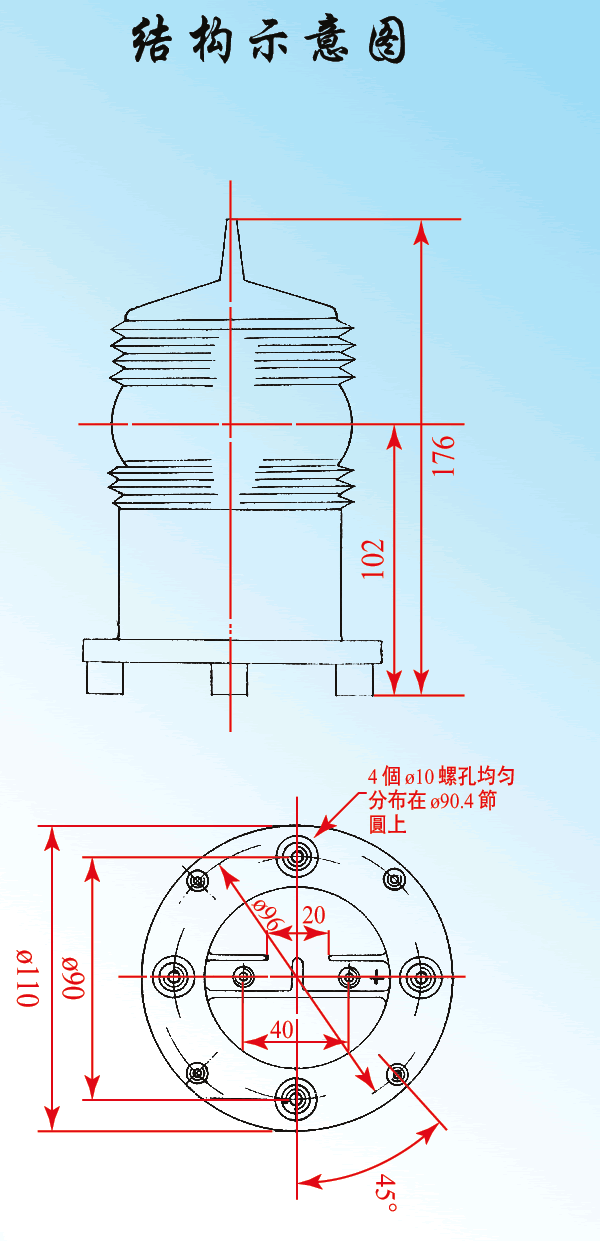

under-pan installation specification
|
pitch circle Φ 90mmequispaced4-M6 |
net lamp weight |
0.5Kg |
|
| |
|
| |
|
|
