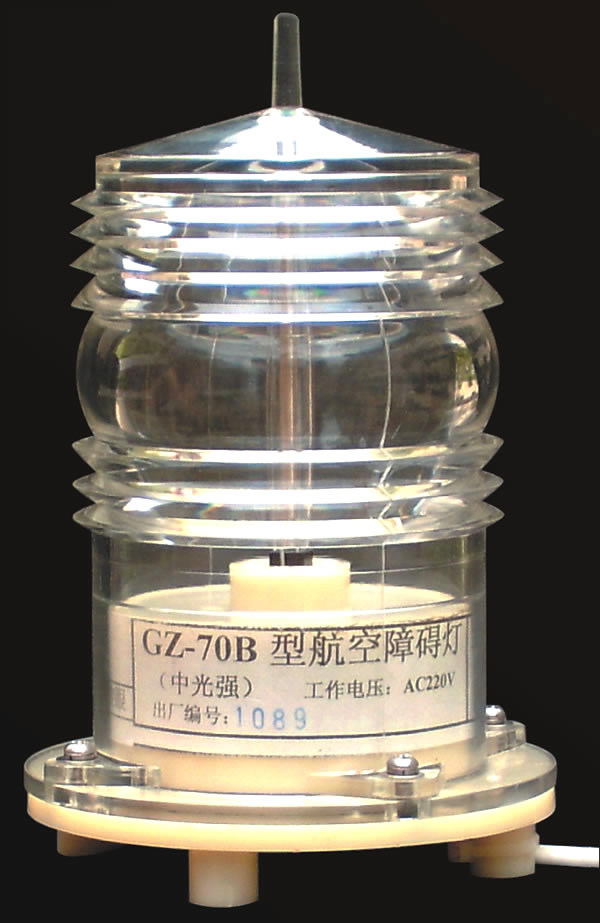

| ＧＺ－ 70 mini-type obstruction lamp utilizes pulsed-xenon tubes as its flash light source. It's small and light with high light intensity and light control switches. The 70mm fresnellens is molded with polypropylene acid plastics. The lamp fixture is made of ABS engineering plastics, which is strike resistant and has quite high intensity. The pulsed-xenon tube flashes under the control of quality electronic components and can function with electricity supply, which is suitable for road blockage and related warning signs. |
|
| Main technical parameters： |
|
working voltage |
AC：220V |
color |
red, white |
power waste |
10W |
light control sensitivity |
200LX （ adjustable ） |
light source |
ulsed-xenon tubes |
functioning environment |
-40℃～+70℃ |
life span of the flash tube |
1×108 times |
light intensity |
2000cd |
|
flash frequency |
20-60 times/min （ adjustable ） |
under-pan installation specification |
pitch circle Φ 90mmequispaced4-M6 |
net lamp weight |
0.5Kg |
|
| |
|
| |
|
|
