Clicks enlarges   Light condition

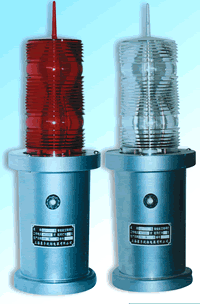

The lamp utilizes a single-chip computer as its core component, which combines perfectly with other quality electronic components to control the pulsed-xenon tubes to give off bright flashes. It's controlled by the light-control switch. Four tubes flash alternatively and the flash light intensifies due to the compound lens molded with polypropylene acid plastics. The voltage range can be as broad as AC85V-260V. The lamp cover is designed all-in-one of aluminum alloy. Here are three synchronous flash control methods to select: 1 、 ordinary type---- use centralized control cabinets to achieve synchronous flash. 2 、 intelligent type —— use synchronous wires and achieve synchronous flash in a hand-in-hand way. 3 、 digital type---- use the power line carrier remote control technology, therefore achieve synchronous flash without control cabinets and synchronous wires ； the synchronous flash principle of GZ-90-(T 、 R) refers to that of GZ-6(T 、 R) aviation obstruction lamp. Main technical parameters： working voltage 　AC220v（+40V/-135V） static electricity stream 　10mA dynamic power waste 　<50W flash frequency 　 20-60 times/min （ adjustable ） light control sensitivity 　 200LX （ adjustable ） tubes 4 　 （ produced by haimann in Germany ） life span of the flasher 　 single tube>108times effective light intensity 　white 100000cd, red 40000cd functioning environmen 　-40℃～+70℃ level of protection 　IP65 normal insulation voltage intensity 　 2000V50Hz 、 1mA 、 1minwithout spark-through 、 arc-over phenomenon nder-pan installation specification 　 pitch circle Φ 120mm equispaced 3-M10X50mm bolt net lamp weight 　3.5Kg   wiring diagram
