Shanghai Safe Aero-mark Electric Co., Ltd

Clicks enlarges

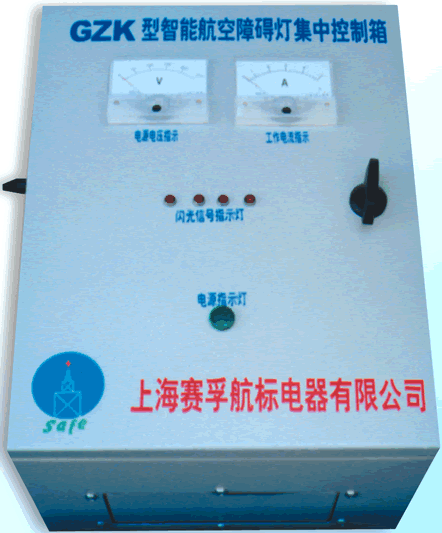

    GZK digital obstruction lamp centralized control cabinet is the auxiliary product of the GZ series long-life. The control cabinets of this series can operate 2-20 aviation obstruction lamps to flash synchronously and are mainly adopted by places with much power grid jamming. It utilizes single-chip computer as the core component which operates in a stable and reliable way through preset software according to the digital requirements.
Main technical parameters :
working voltage
 AC220v
output volume
 2000VA
Sunbeam switch sensitivity
 200LX ( infinitely adjustable )
Flash period
 20 times/min ( 31 types, adjustable )
functioning environment
 -40℃~+70℃
nstallation
 wall hanging
normal insulation voltage intensity
  2000V50Hz 、 1mA 、 1min without spark-through 、 arc-over phenomenon
size
 400mmX300mmX200
net lamp weight
 6Kg
