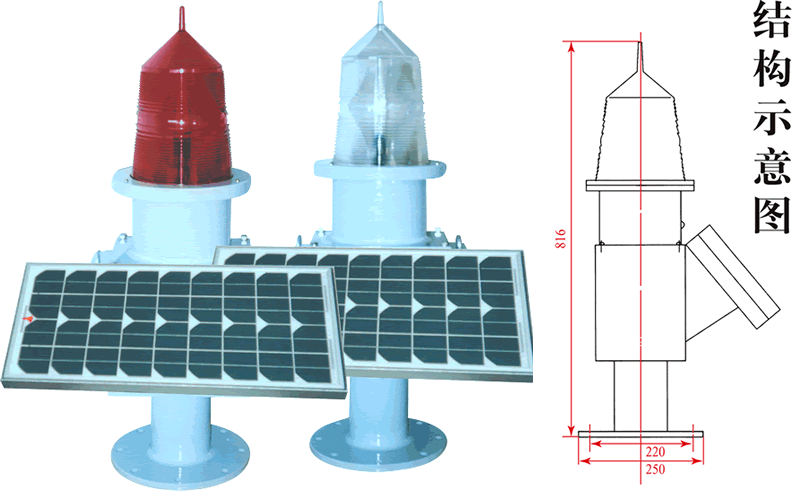

TGZ-155 silicon solar-powered digital aviation obstruction lamp mainly consists of a 155mm plastic lens, a flasher, an aluminum alloy cell box, a fixture, maintenance-free storage cells and a physical silicon solar panel. The 155mm plastic lens is a fresnellens molded with polypropylene acid plastics.
This kind of lens has excellent light transmittance and is anti-sunbeam-aging. There are four colors including white, red, green and yellow for customers to select The flasher is the core controlling component preset by single-chip computer software and constitutes the automatic light control switch and other circuits with quality auxiliary electronic components. More than 10 thousand watts of boost it's at work operates the pulsed-xenon lamp and forces it to give off strong flash light. The perfect combination of high-efficiency physical silicon solar panel and high-capacity storage cells provides adequate power for the flasher to keep flashing for 15 continuous overcast and rainy days. This product doesn't require any maintenance for 3 years if used in normal conditions.
This lamp is especially suitable for high rises without electricity supply, skyscrapers, power towers, TV, broadcasting and microwave communication towers, chimneys, bridge towers and airport lanes etc., which attach much importance to flameproof measures. pressure when |
|
| Main technical parameters： |
|
working voltage |
12v±20%） |
static electricity stream |
10mA |
light color options |
red, green, white |
flash frequency |
20-60 times/min （ adjustable ） |
|
modulator tubes |
2 (produced by 海曼公司 in Germany ） |
he life span of the flasher |
single tube>108 times |
light control sensitivity
|
200LX(adjustable) |
Physical silicon solar panel |
20W |
Maintenance-free storage cell capacity |
12V50AH |
normal insulation voltage intensity |
2000V/50Hz 、 1mA 、 1minwithout spark-through 、 arc-over phenomenon |
functioning environment |
-40℃～+70℃ |
level of protection |
IP65 |

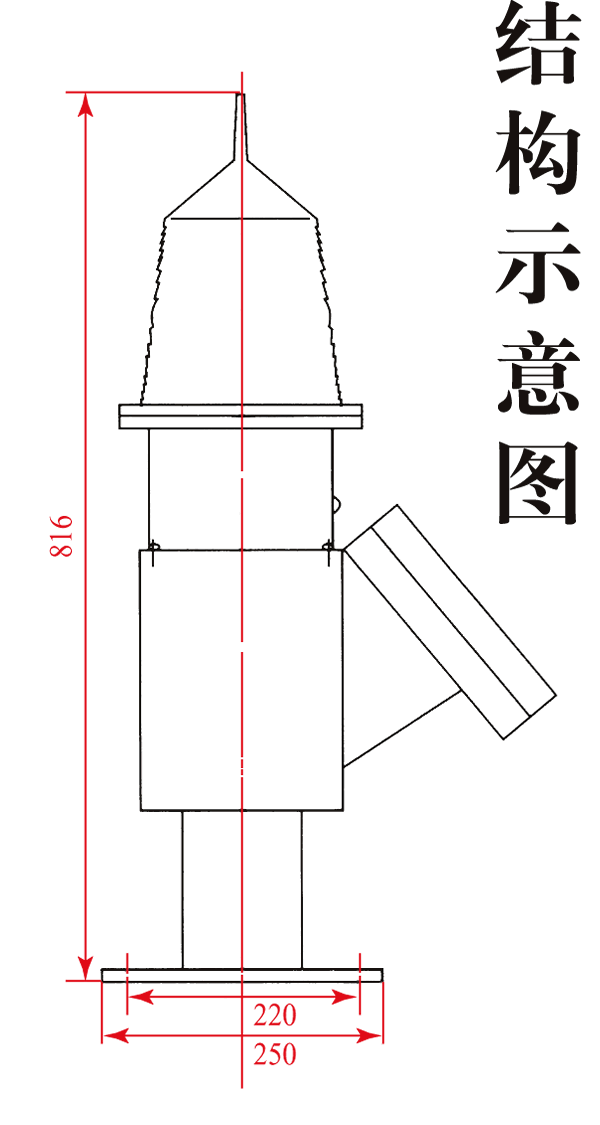

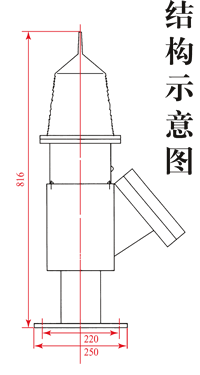

nder-pan installation specification |
pitch circle Φ 220mmequispaced8- Φ 14mmhole |
net lamp weight |
38Kg |
|
| |
|
| |
|
|
