Clicks enlarges   Light condition

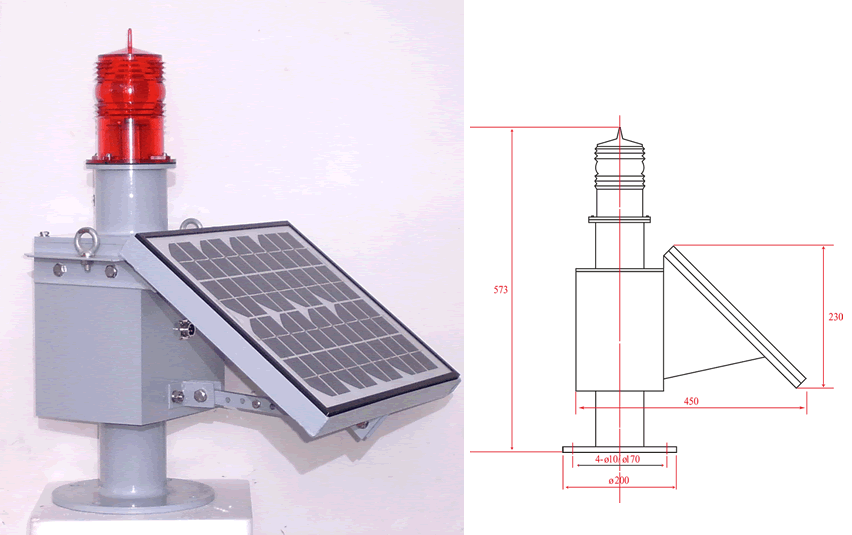

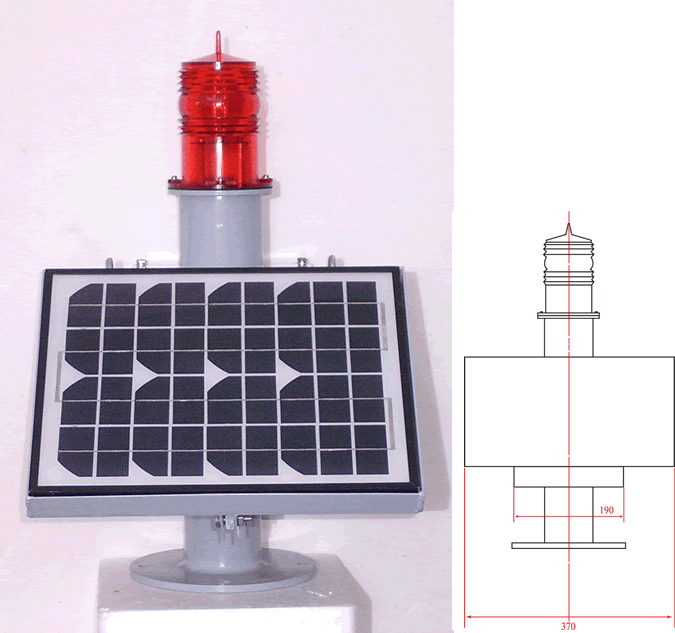

TGZ-70 digital silicon solar-powered aviation obstruction lamp mainly consists of a 70mm plastic lens, a flasher, aluminum alloy cell box and fixture, maintenance-free storage cells and a physical silicon solar panel. 　　The 70mm plastic lens is a fresnellens molded with polypropylene acid plastics. This kind of lens has excellent light transmittance and is anti-sunbeam-aging. The flasher utilizes quality electronic components to form the light-control switch which controls the imported super long-life pulsed-xenon tubes to give off bright flash light. 　　 The perfect combination of high-efficiency physical silicon solar panel and high-capacity storage cells provides adequate power for the flasher to keep flashing for 10 continuous overcast and rainy days. This product doesn't require any maintenance for 3 years if used in normal conditions. Main technical parameters： working voltage 　12V±20% static electricity stream 　<10mA flash frequency 　 20-60 times/min （ adjustable ） life span of the flasher 　1X 108 times(produced by haimann in Germany ) light intensity 　>40000cd light control sensitivity 　200LX(adjustable) maintenance-free storage cell capacity 　12V24AH functioning environment 　-40℃～+70 ℃ level of protection 　IP65 under-pan installation specification 　 pitch circle Φ 170mmequispaced4- Φ 10mmhole net lamp weight 　18Kg   wiring diagram
